Gas/Oil Fired Human Body Crematorium

The LPG/PNG/PNG gas crematorium consists of a cremator– double chamber gas cremation furnace, air blowers, LPG/PNG/PNG gas burners, burner system, gas regulators, LPG/PNG gas pipelines, crematorium emissions control Equipment, control panel board. The LPG/PNG gas cremation facts are as follows:

1. To cremate a human body: LPG/PNG fuel required
2. Cremation ashes take out time: Within 3 hours from the completion of cremation.
3. Cremation time per body: 60 to 90 minutes.
4. The LPG/PNG gas cremation costs are cheap and affordable at all crematoriums compared to burial costs.
Crematorium capacity: 80–100 kg/hr.
Overall dimension: 3.2 M (L) x 1.7 M (W) x 3.5 M (H)
Cremation chamber size: 2.4 M (L) x 1 M (W) x 1.1 (H) Appx.
Post Combustion: 3.2 M (L) x 0.5 M (W) x 0.8 (H) Appx.
NO of chamber: 2 Nos (Primary & Secondary)
No of Burner: 3 Nos.
2 Nos for Primary & 1 for Secondary.

Human Body Incinerator (Electric)

The electric crematorium consists of a cremator—double chamber electrical cremation furnace, fresh air blowers, and crematorium emissions control equipment, control panel board, and other necessary crematorium equipment. The cremator has an ash pit to collect the cremation remains kept in a container.

Crematorium capacity: 80–100 kg/hr.
Overall dimension: 3.2 M (L) x 1.7 M (W) x 3.5 M (H)
Cremation chamber size: 2.4 M (L) x 1 M (W) x 1.1 (H) Appx.
Post Combustion: 3.2 M (L) x 0.5 M (W) x 0.8 (H)
NO of chamber: 2 Nos (Primary & Secondary)
No of Heater: 18 Nos. (9 Nos x 2 Zone)
Kw Rating: 27 kW working & 27 kW spare Load

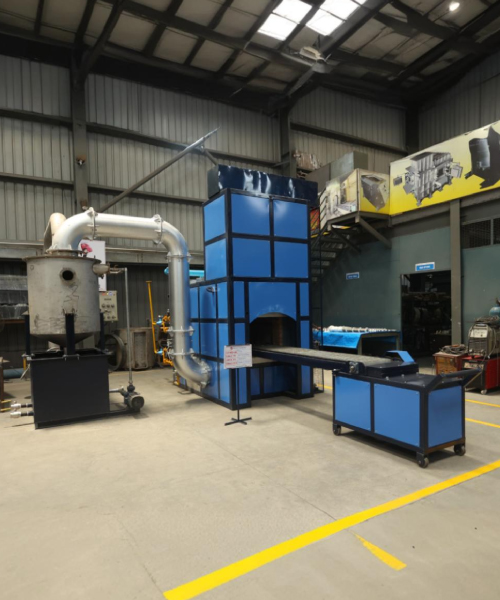

Big Animal Incinerator (gas/electric/hybrid)
